Introduction:
VGA to HDMI Converter box converts PC VGA and audio to HDMI, allowing connection of PC to 1080p HDTV.
It supports multiple resolution up to 1920x1080@60HZ.
while it supports the most popular resolutions to ensure high compatibility with wide brands of PCs and HDTVs.
It provides cheaper solution of connecting PC to HDTV.
Product Features:
Easy to use, installs in seconds, no settings and it is a resolution pass-through converter.
Support HDMI1.3 version (compatible with 1.0/1.1/1.2), Support HDCP 1.2
Audio output: 3.5 mm-outs (can transfer to R/L)
Technical Parameters:
VGA Input:-----VGA Input Resolution
640*480@60Hz、800*600@60Hz、
1024*768@60Hz、1280*720@60Hz、
1280*768@60Hz、1280*800@60Hz、
1280*1024@60Hz、1360*768@60Hz、
1600*1200@60Hz、(1920*1080@60Hz)
HDMI Output----HDMI output support: 480P/720P/ 1080I/1080P@60Hz
Audio output interface: connect stereo amplifier or headset
DC/5V: Power input interface (DC/5V 600mA)
Interface functions:
1. VGA input interface: connect the host PC or laptop computer which with VGA Interface
2. HDMI output interface: Connect HDMI connections are high-definition TV or monitor HDMI Interface
3. Audio Input Interface: Connect AUDIO OUT Interface which from PC or laptop computer
4.DC/5V: Power input interface (DC/5V 600mA)

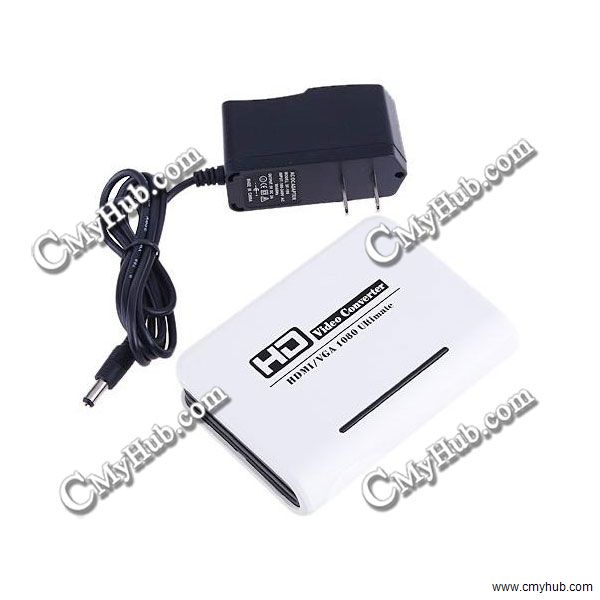

Package Includes:
1 x VGA to HDMI Converter
1 x Power Supply (US plug)
1 x English User Manual
